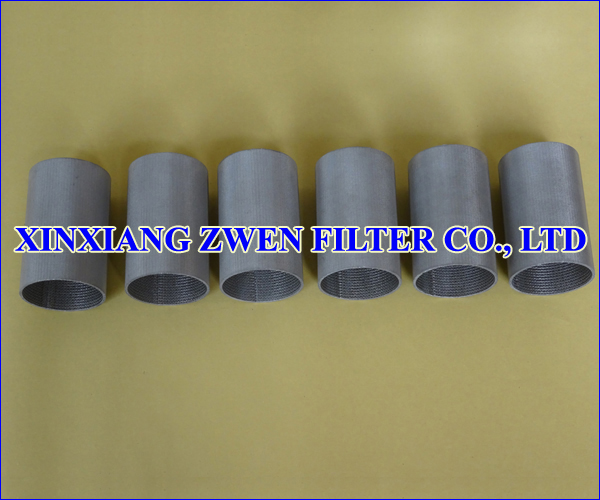

SS Sintered Porous Filter Tube

SS Sintered Porous Filter Tube

SS Sintered Porous Filter Tube Technical Parameter

Raw Material: SS 316L, SS 304

Filter Media: ZWEN Sintered Wire Mesh

Filter Rating Range: 0.5 Micron ~ 2000 Microns

Filter Efficiency: > 99.99 %

Operation Temperature:  816

Outside Diameter: 10 mm, 15 mm, 25 mm, 30 mm, 50 mm, 60 mm, 63.5 mm, 65 mm,100 mm, 150 mm, 250 mm, 380 mm, 500 mm or others

Length: 40 mm, 90 mm, 127 mm (5''), 254 mm (10''), 508 mm (20''), 762 mm (30''), 1016 mm (40'') or others


SS Sintered Porous Filter Tube Feature

1. SS sintered porous filter tube is surface filtration

2. SS sintered porous filter tube is good for backwash because the pore passage of zwen sintered wire mesh aperture is very smooth

3. SS sintered porous filter tube has uniform pore size distribution

4. Wire mesh will not shed in the filtration process

5. High compression strength

6. High mechanical strength

7. High rigidity

8. High abrasion resistance

9. High durability against most liquids, gases and aggressive steam

10. High temperature resistance

11. High filter rating accuracy

12. High filter efficiency

13. High corrosion resistance

14. Washable and Cleanable

15. Reusable

16. Long service life


Application

Polyester filtration, polymer filtration, membrane filtration, oil filtration, steam filtration, gas filtration, powder filtration, liquid filtration, water filtration, beverages filtration, detergent filtration, solvents filtration, medicine filtration, pharmaceutical industry, petroleum industry, biological industry, chemical industry, chemical fiber industry, food industry


About Us

XINXIANG ZWEN FILTER CO.,LTD  produces sintered filter tube (multilayer sintered filter tube, ss sintered filter tube, stainless steel sintered filter tube, ti sintered filter tube, titanium sintered filter tube), sintered metal filter tube (multilayer sintered metal filter tube, ss sintered metal filter tube, stainless steel sintered metal filter tube), sintered porous filter tube (ss sintered porous filter tube, stainless steel sintered porous filter tube, ti sintered porous filter tube, titanium sintered porous filter tube), sintered powder filter tube (ss sintered powder filter tube, stainless steel sintered powder filter tube, ti sintered powder filter tube, titanium sintered powder filter tube), sintered wire cloth filter tube, and sintered wire mesh filter tube.


XINXIANG ZWEN FILTER CO.,LTD has advanced sintering equipment, advanced welding equipment and a high level of skilled workers.


XINXIANG ZWEN FILTER CO.,LTD has passed ISO 9001:2008 quality management system and SGS audit test.


XINXIANG ZWEN FILTER CO.,LTD main markets are European market and North American market.


XINXIANG ZWEN FILTER CO.,LTD Key Clients: Parker, GKN, SIEMENS, MAHLE.
